Asymmetrical Spinnaker | Gennaker NS
from € 570 | $ 620

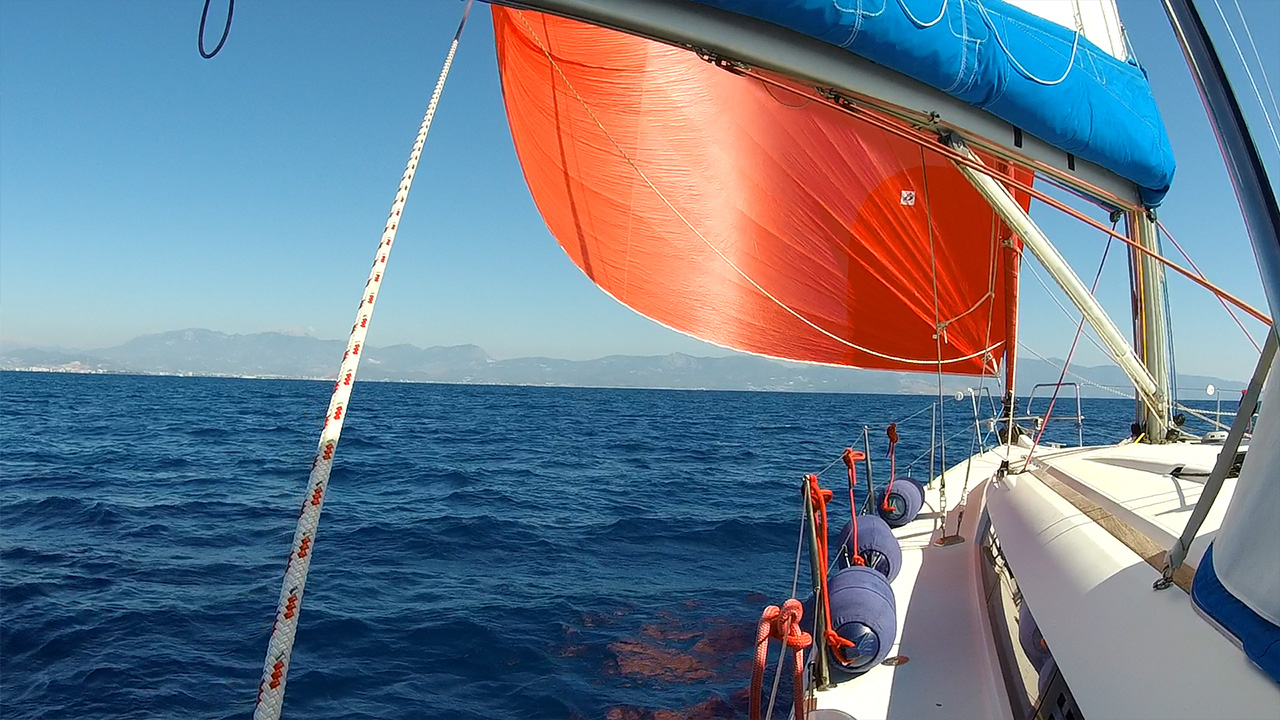

If you are looking to buy an asymmetrical spinnaker, our standard gennaker sail suit many sailors perfectly. An advantageous and easy to pick option as a first downwind sail. Do you need a simple and durable training spinnaker for regattas? Do you love cruising your sailboat without complex sail adjustments? Look no further – this is the sail for you!

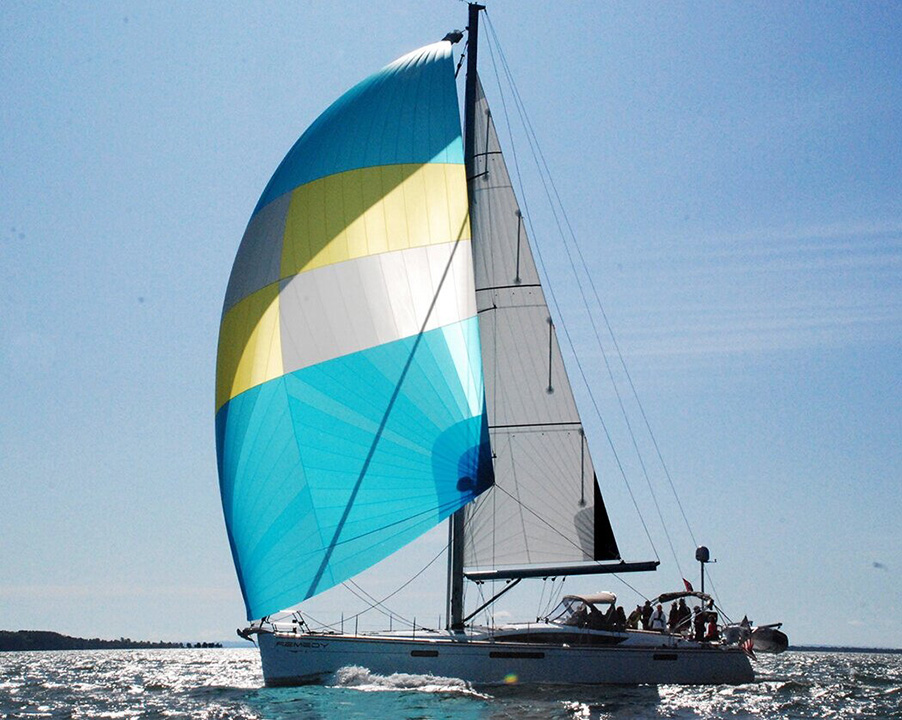

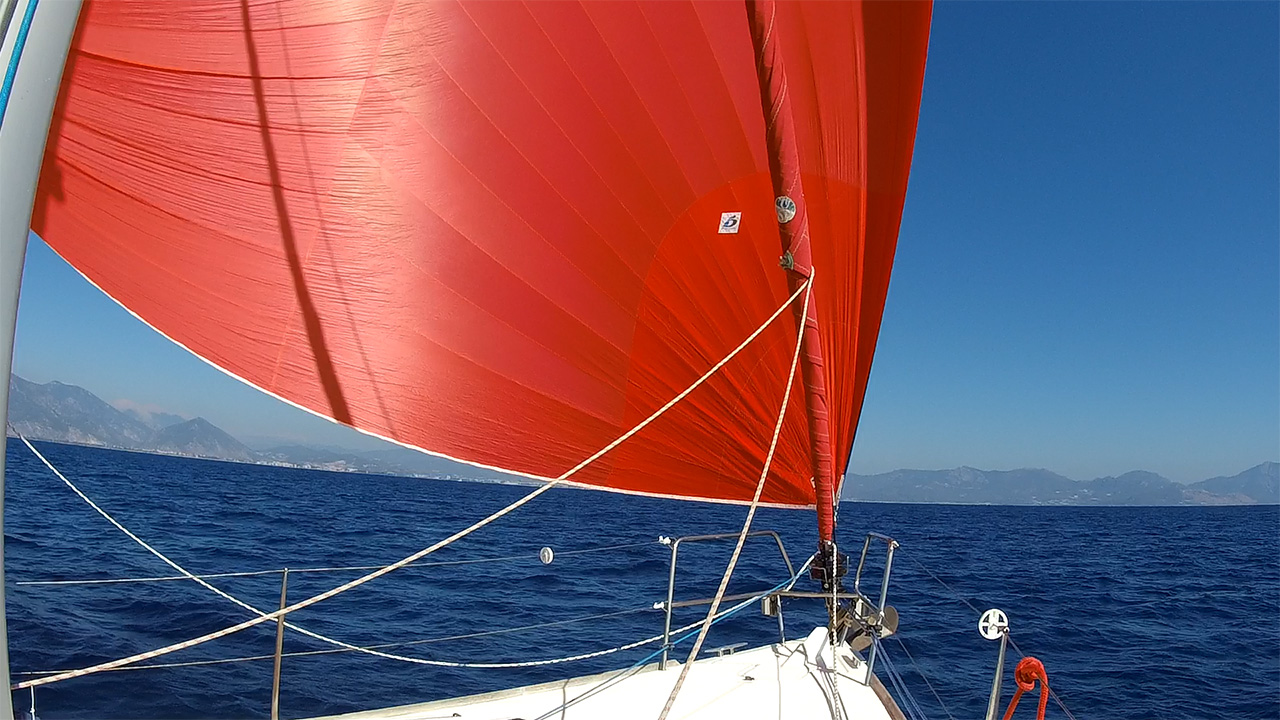

A gennaker or asymmetrical spinnaker is a sail that does not require a spinnaker boom or its associated rigging. Large downwind sails are highly praised by cruising yachtsmen around the world. This type of sail is relatively easy to handle as it does not require a full crew to hoist and manage. A gennaker is much safer than a symmetrical spinnaker because there is no need to work on the bow of the boat. At the same time, an asymmetrical spinnaker or an asymmetric significantly expands the boat’s sailing capabilities, especially in light winds. The power that such a sail provides to a yacht cannot be obtained under any jib or genoa.

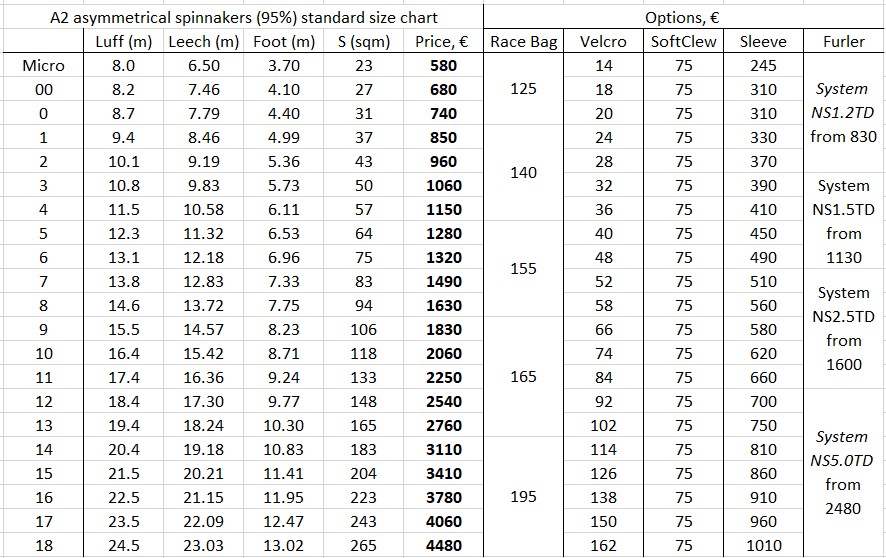

Standard asymmetrical spinnaker / gennaker sizing chart

Below you can find sail measurements and prices including worldwide delivery. For USD prices, please message us.

Above prices include worldwide delivery, except for some remote and hard to reach locations.

Spinnakers up to size “5” are made with 48 gsm or 0.9 Oz fabric weight.

For other gennakers of larger sizes 75 gsm or 1.5 Oz fabrics are used.

There is a similar chart for standard symmetrical spinnakers.

Key features of our asymmetric sail:

  • 21 sizes ranging from 27 to 265 sqm or 250 to 2850 sqft;
  • worldwide delivery in the price;

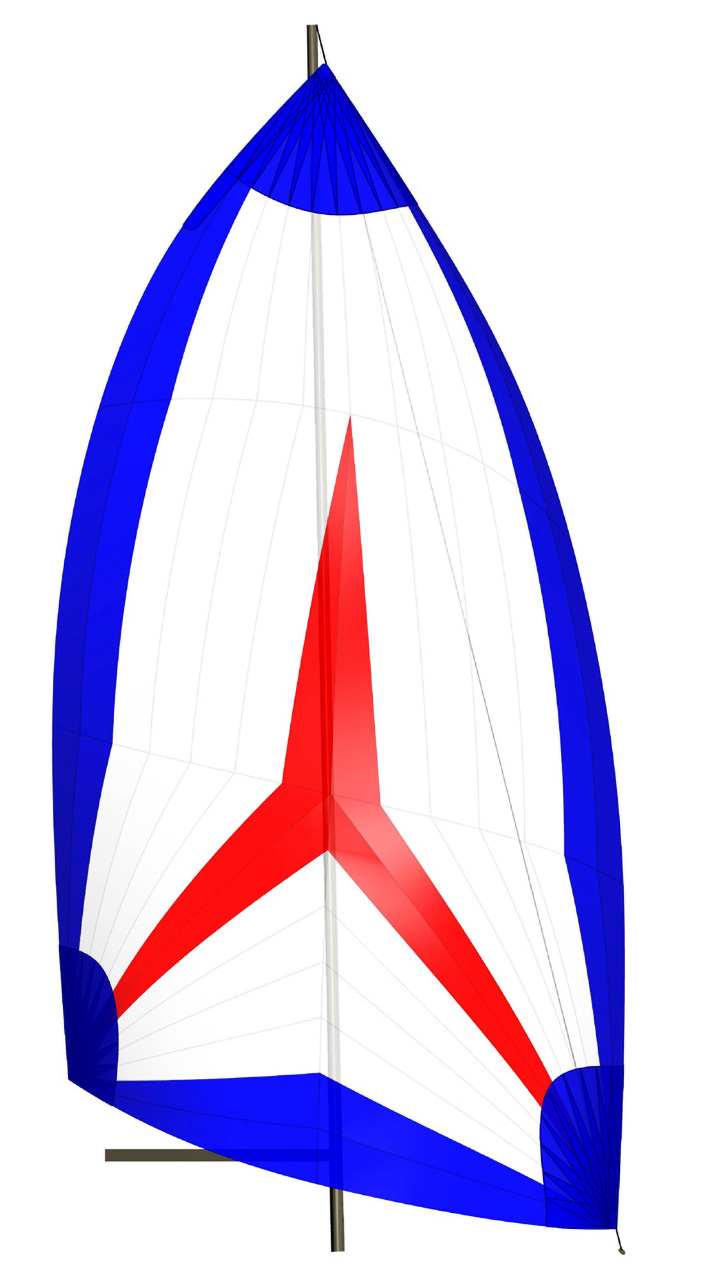

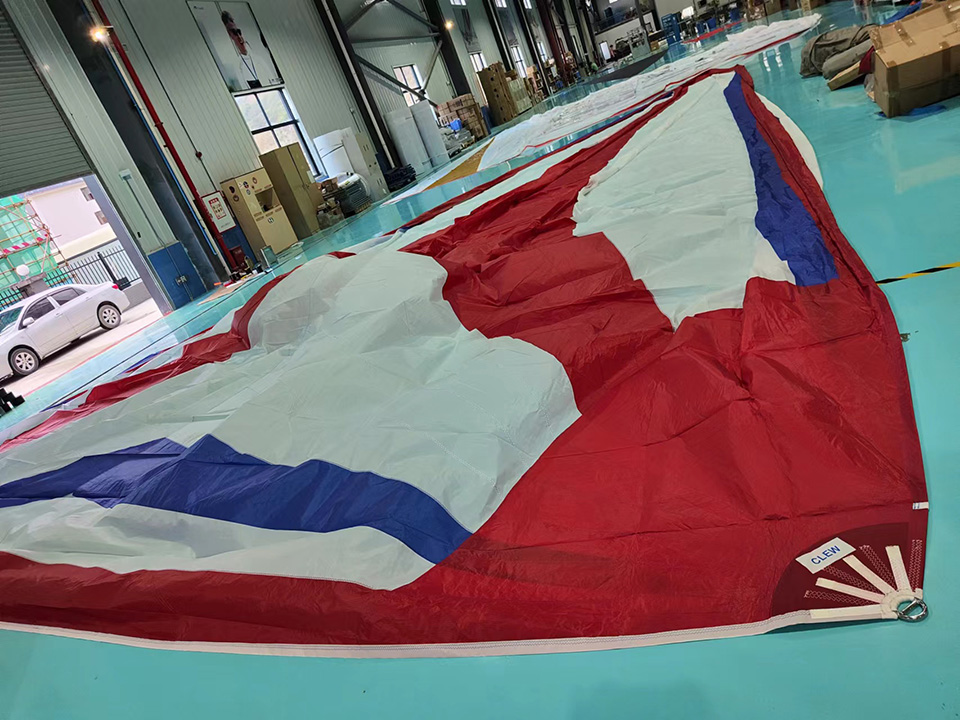

  • А2 type spinnaker of tri-radial design, 3 colors in price;

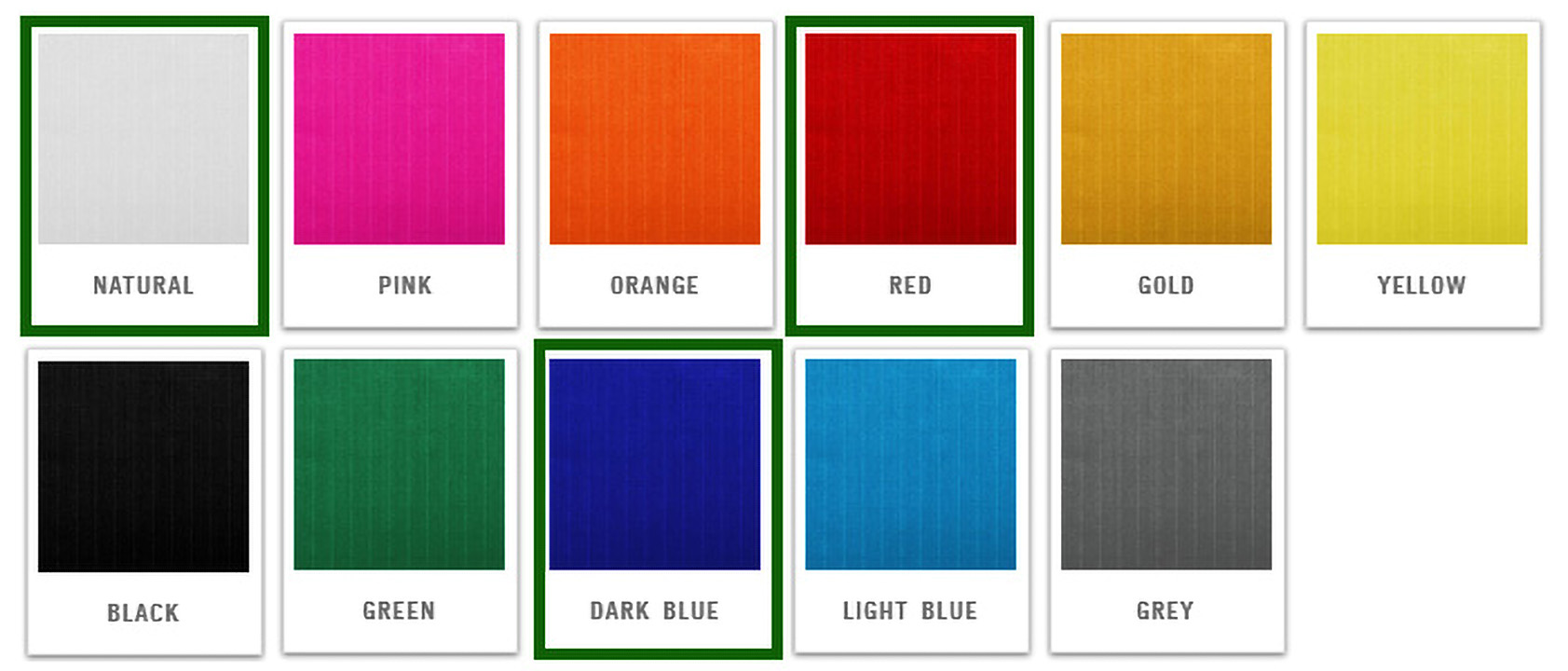

  • color palette to choose from (white, red, dark blue always in stock);

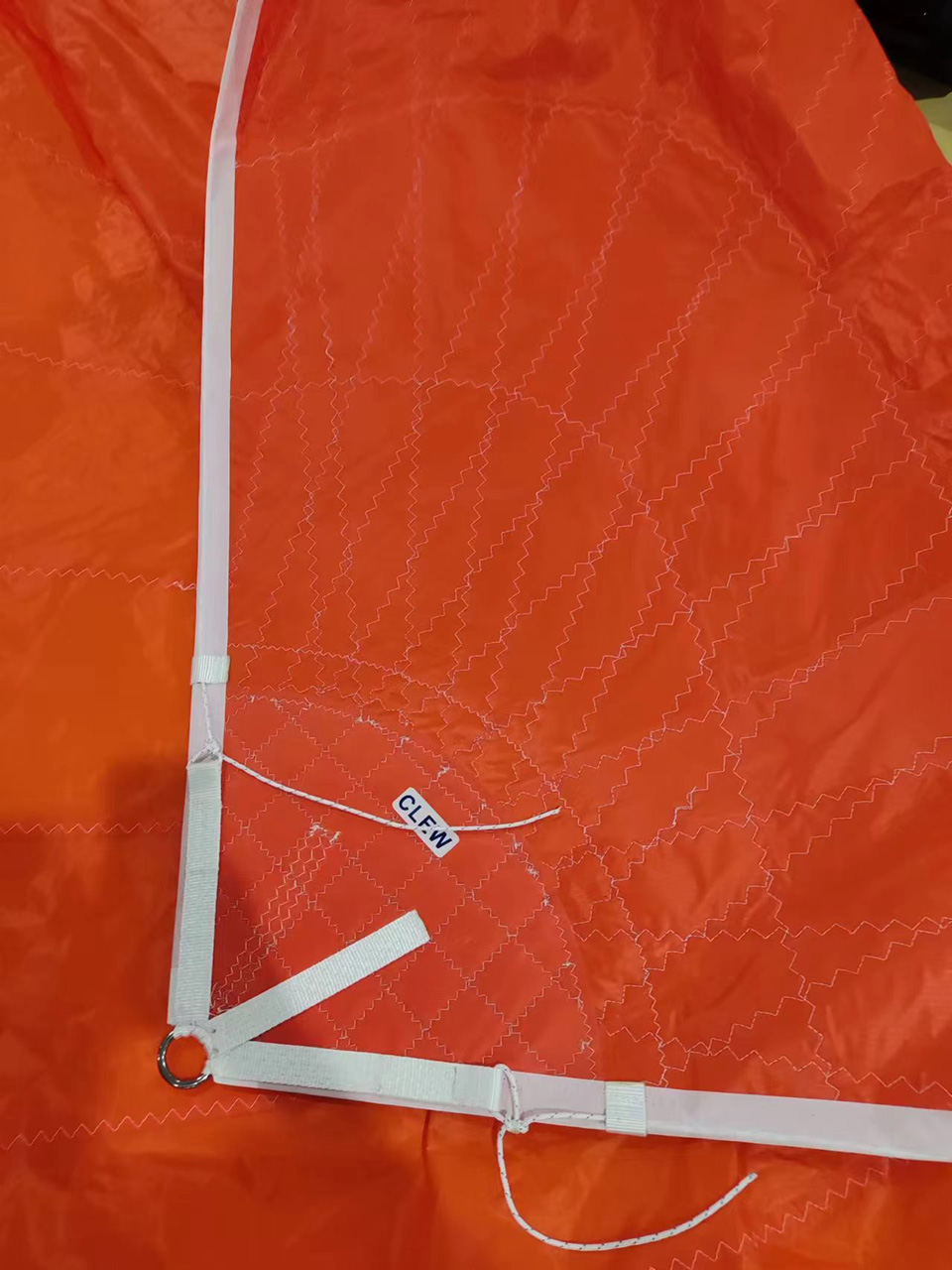

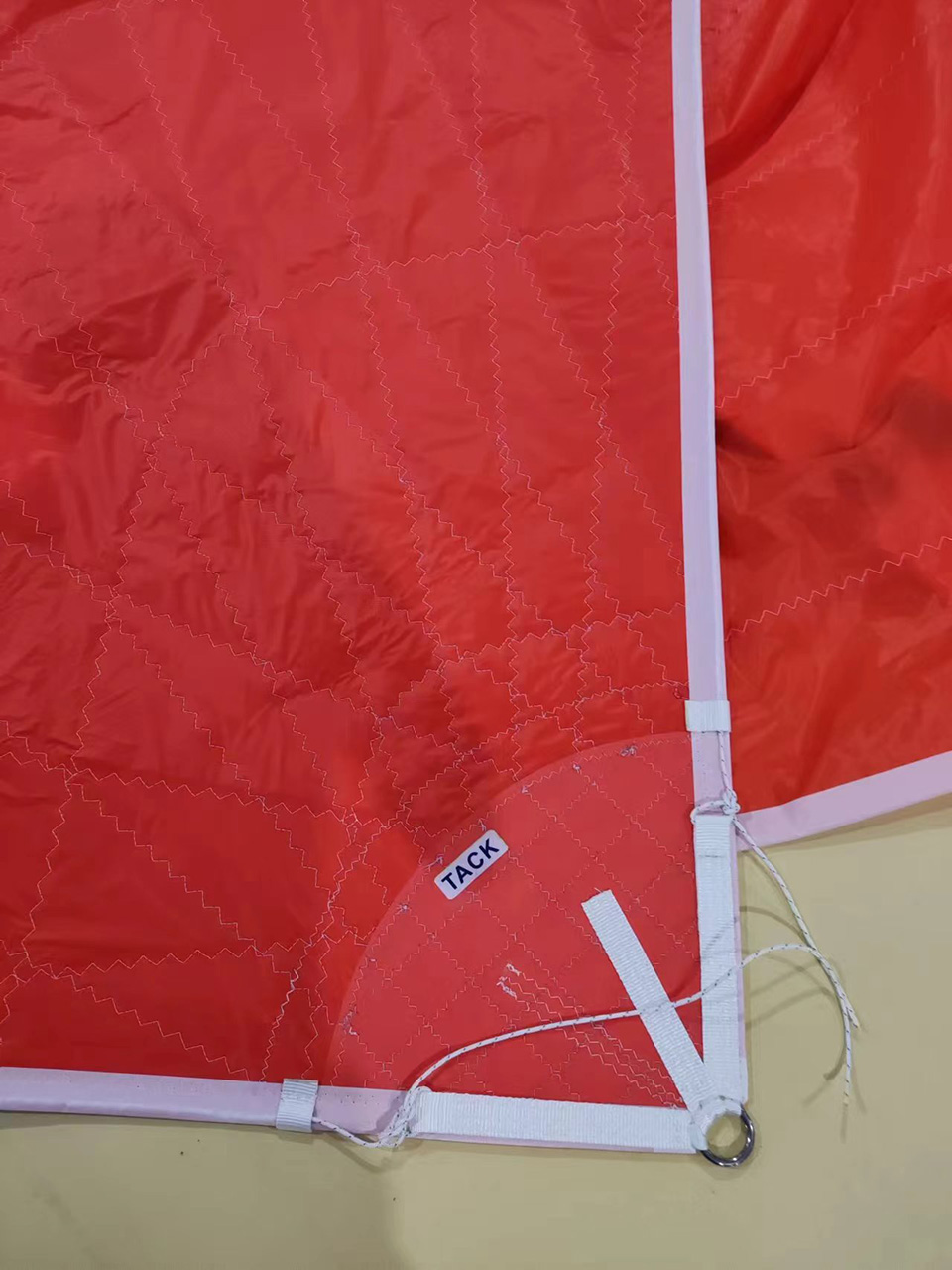

  • stainless steel rings in the corners, reinforced by the webbing;

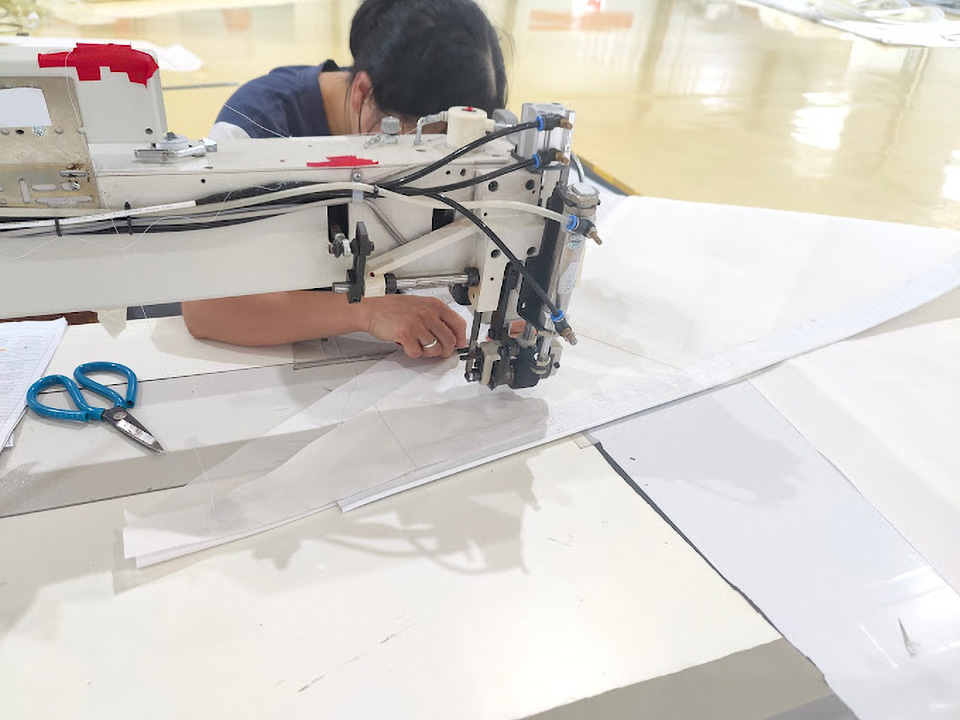

  • panels width 50 cm max, taped and connected with a 50 mm triple zig-zag seam;

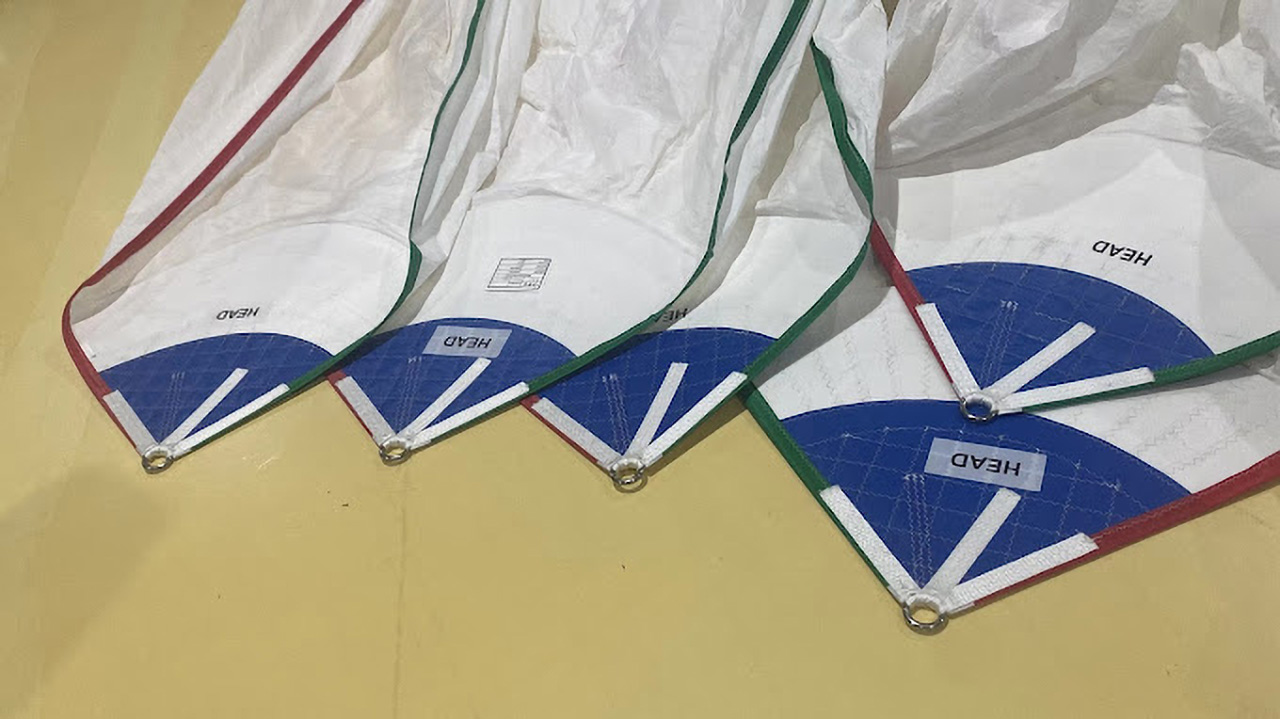

  • sturdy radial dacron colored corner patches;
  • vertical and horizontal seams joining radial areas of the sail;

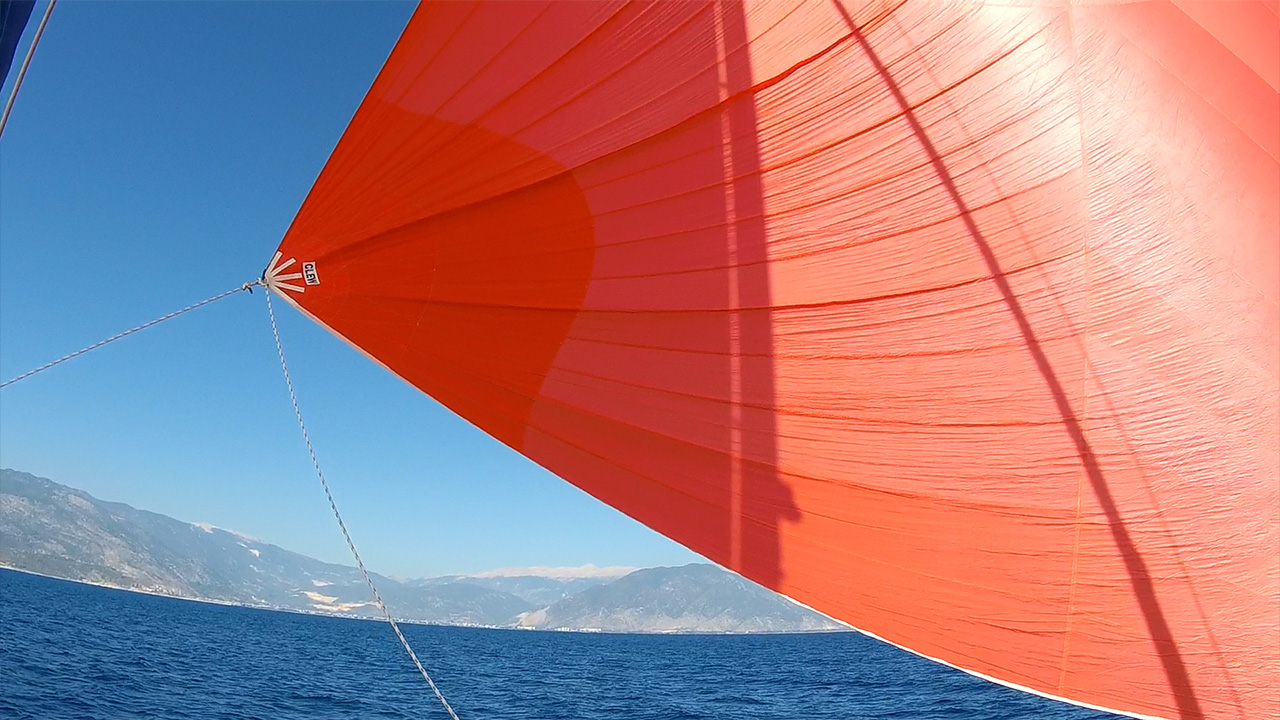

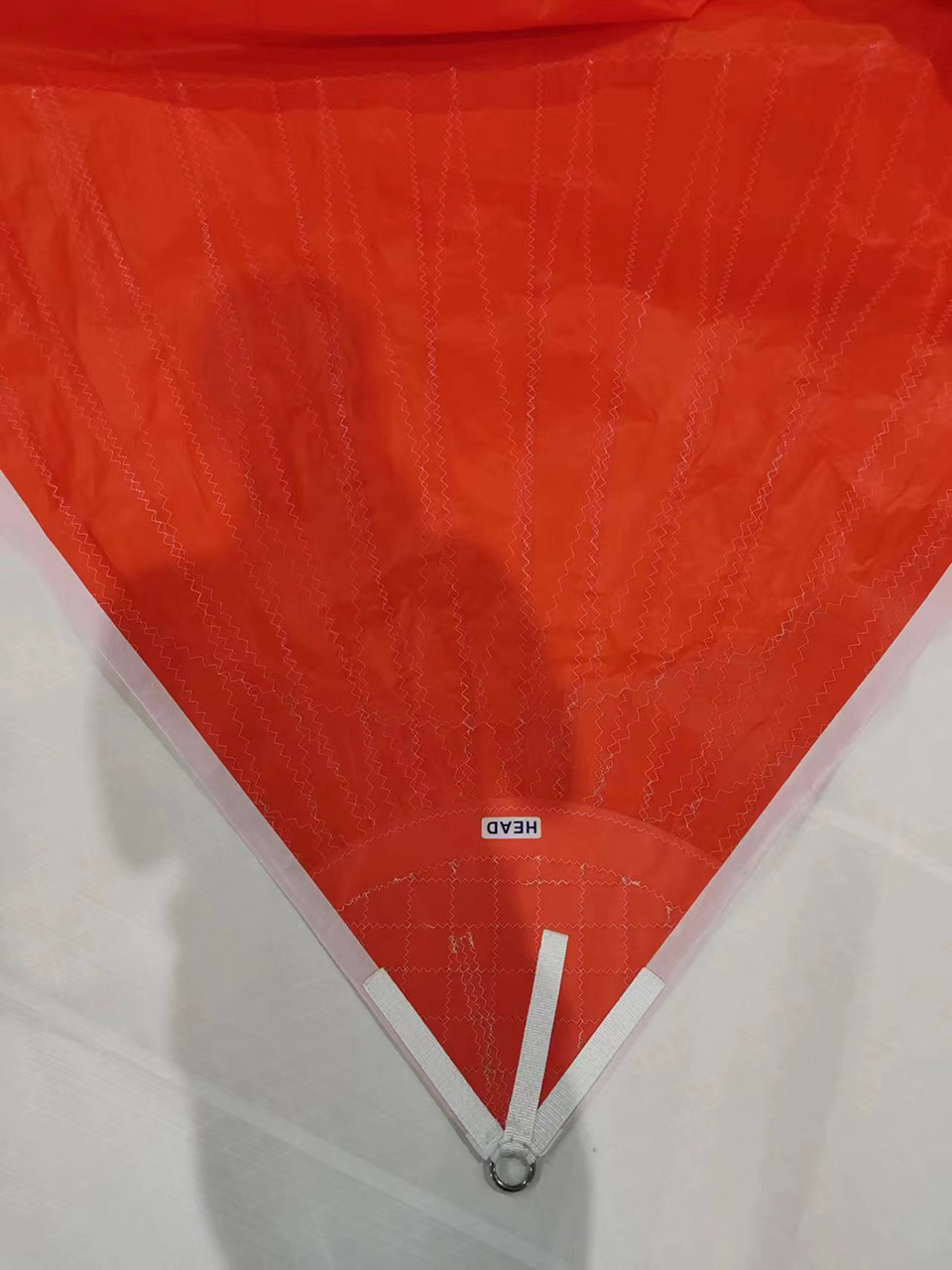

  • Tack / Clew / Head labels on the corners;
  • color indicated side tape: Luff is Red, Leech is Blue and Foot is White;
  • drawstring storage bag included with sail.

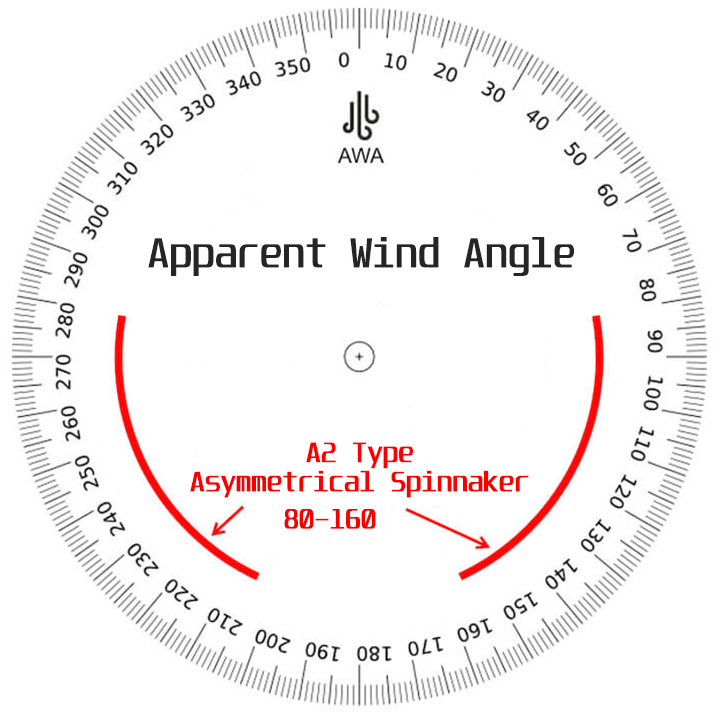

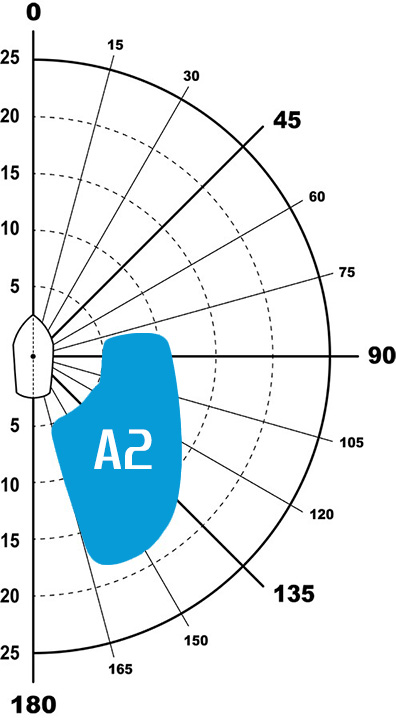

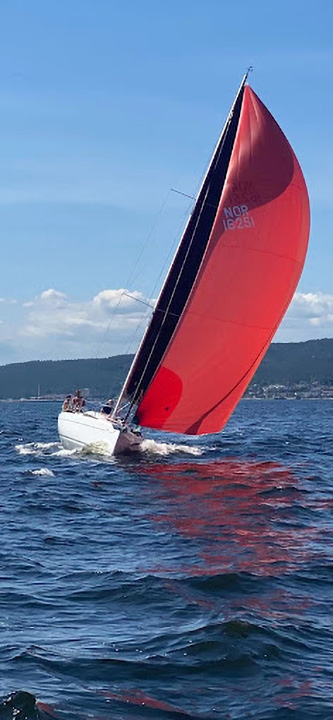

The A2 type asymmetrical spinnaker is a full cut, powerful sail designed for use in light and moderate winds (4 Beaufort wind scale or up to approximately 16 knots). Long Luff allows the gennaker to move freely into the wind in the deep broad reach and running courses. At the same time, this is a fairly versatile asymmetric sail that performs rather well at apparent wind angle of about 80 to 160 degrees.

Like any sail, an asymmetrical spinnaker could be ordered individually, but it is not as demanding on the design project as the main upwind sails. That is why we offer a line of gennaker models constructed for different boat sizes ranging from 6 to 20 meters or from 18 to 65 feet.

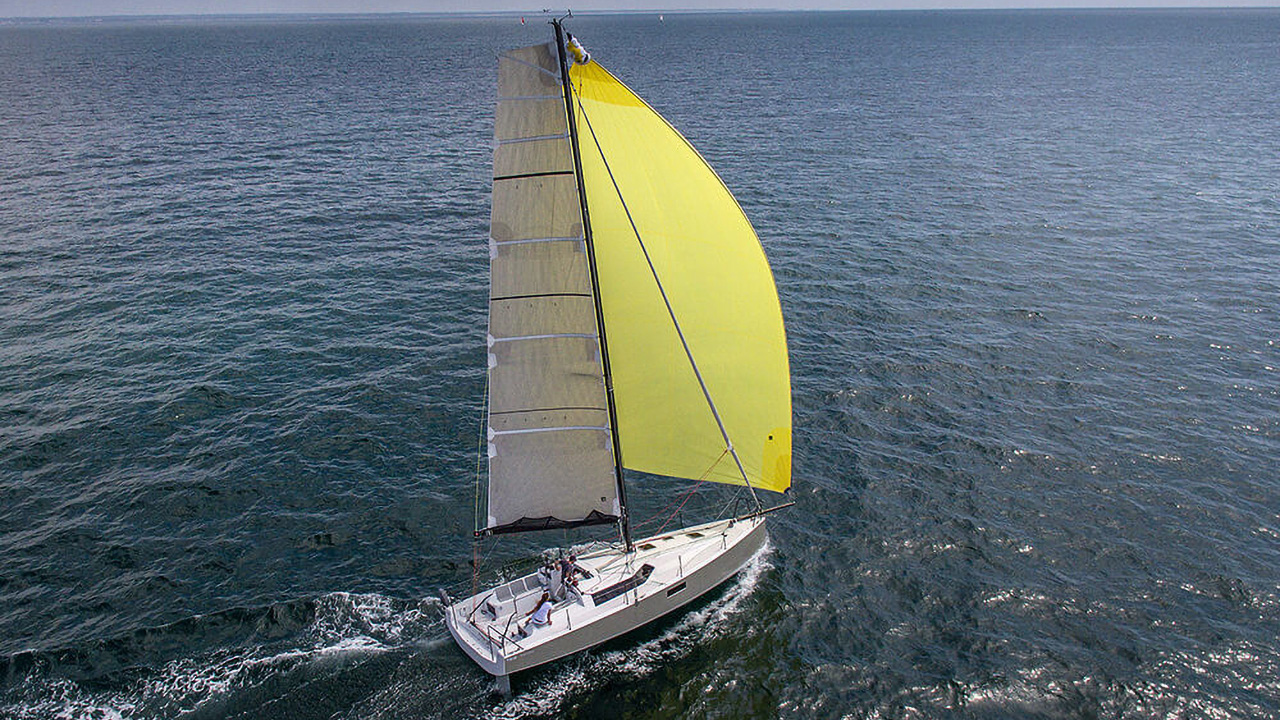

Each standard size of NS Gennaker will fit a wide range of boat. You are free to either put this asymmetric on a top-down furler, or hoist the sail manually. It is also possible to opt for a spinnaker sleeve as an alternative to a gennaker furler.

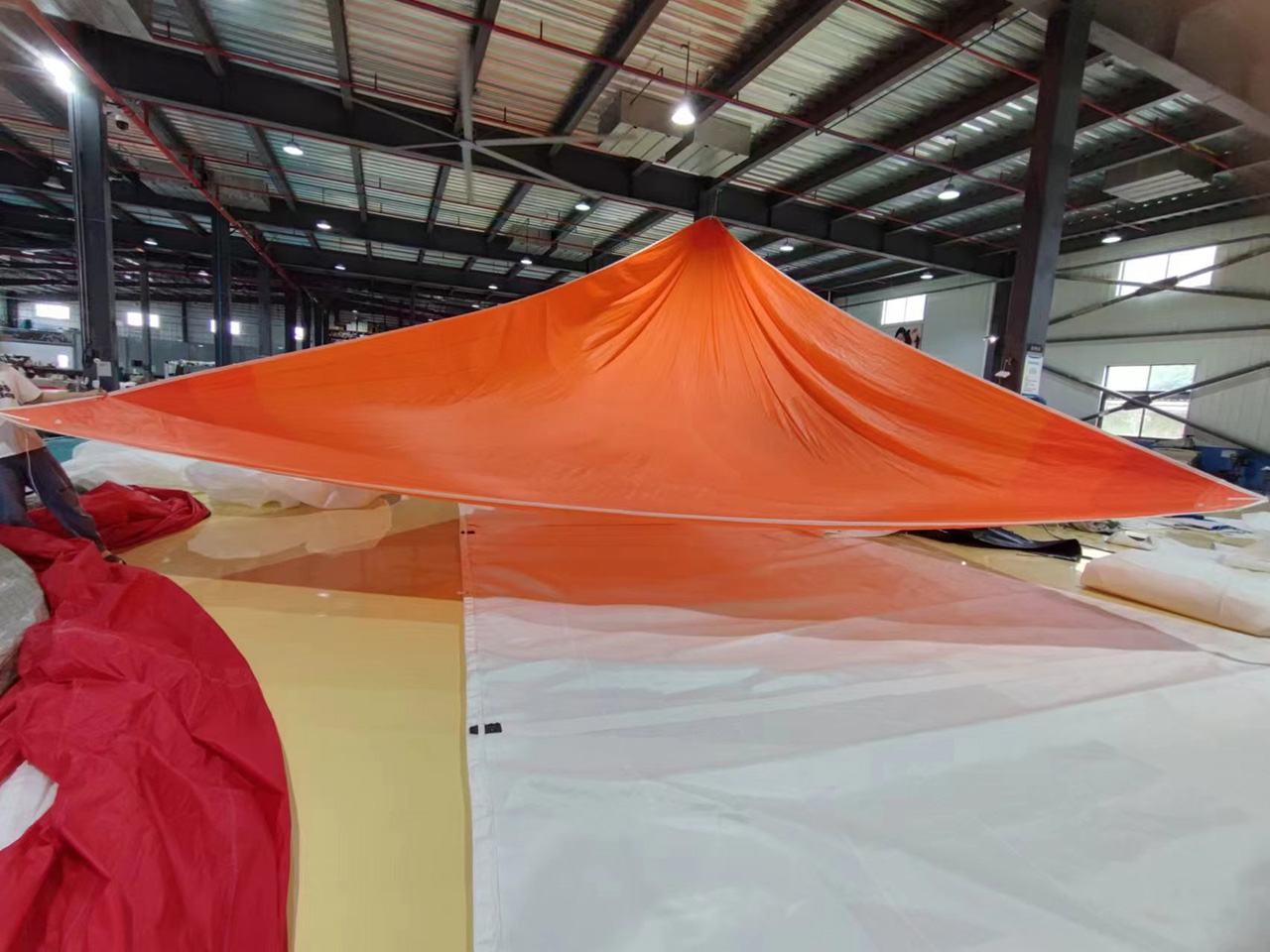

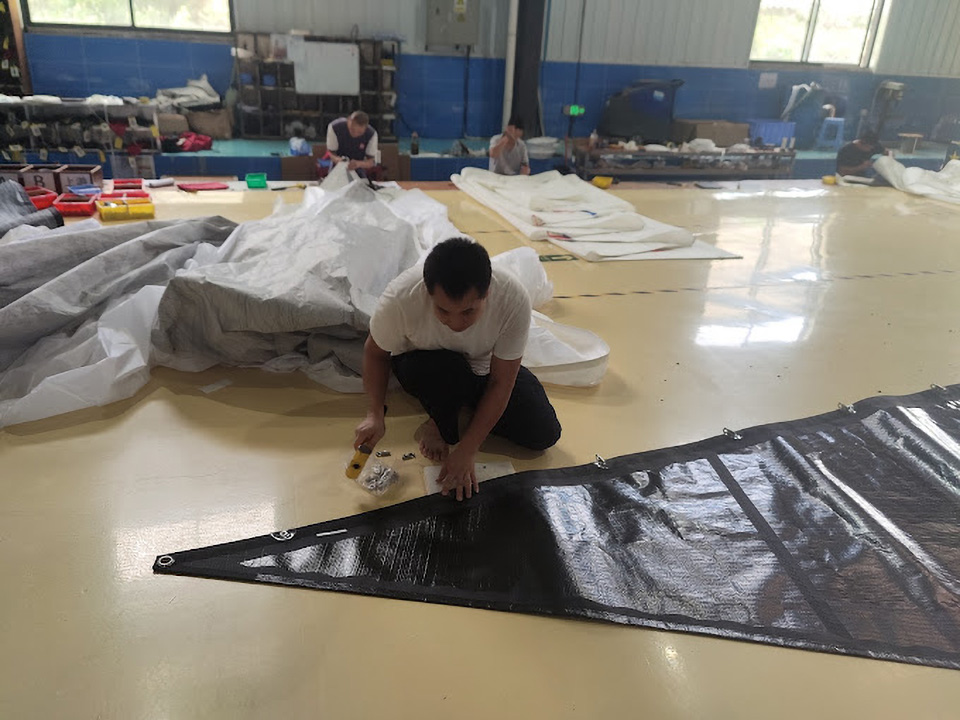

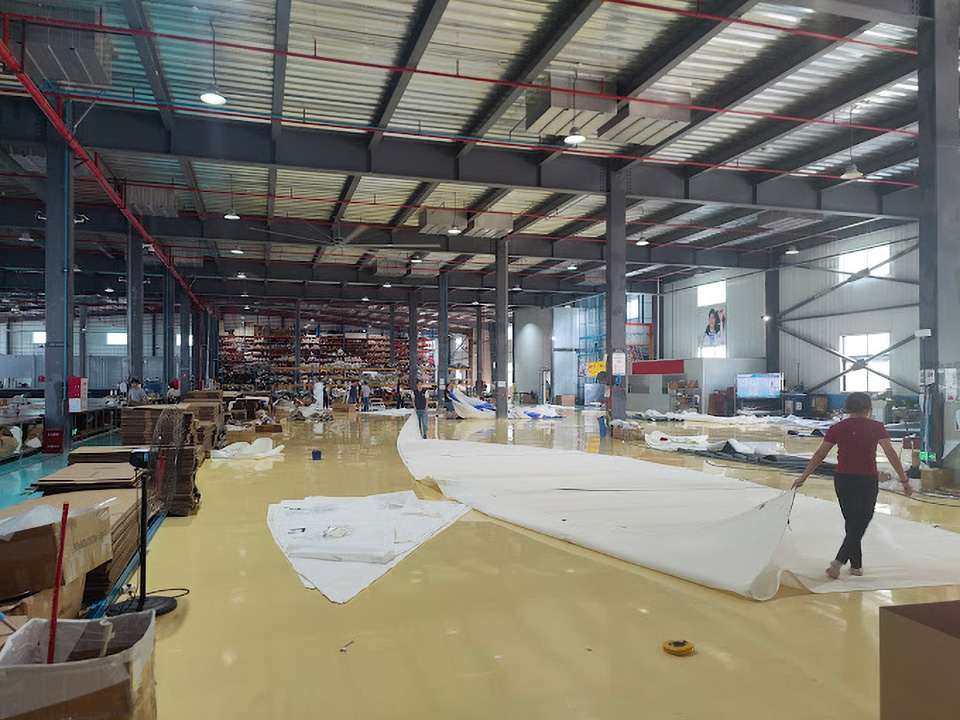

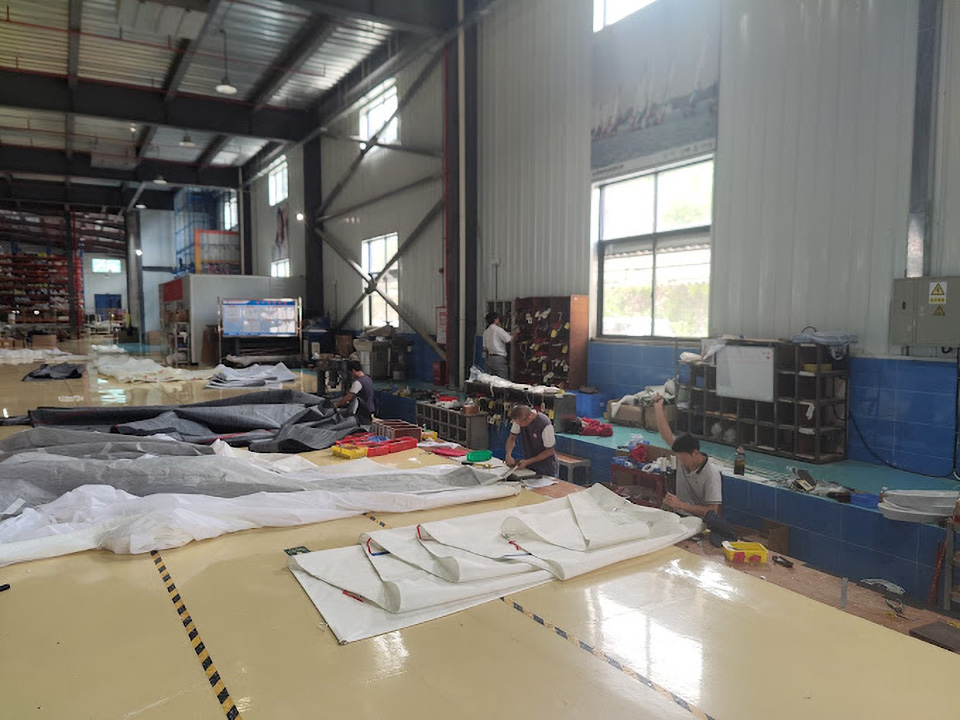

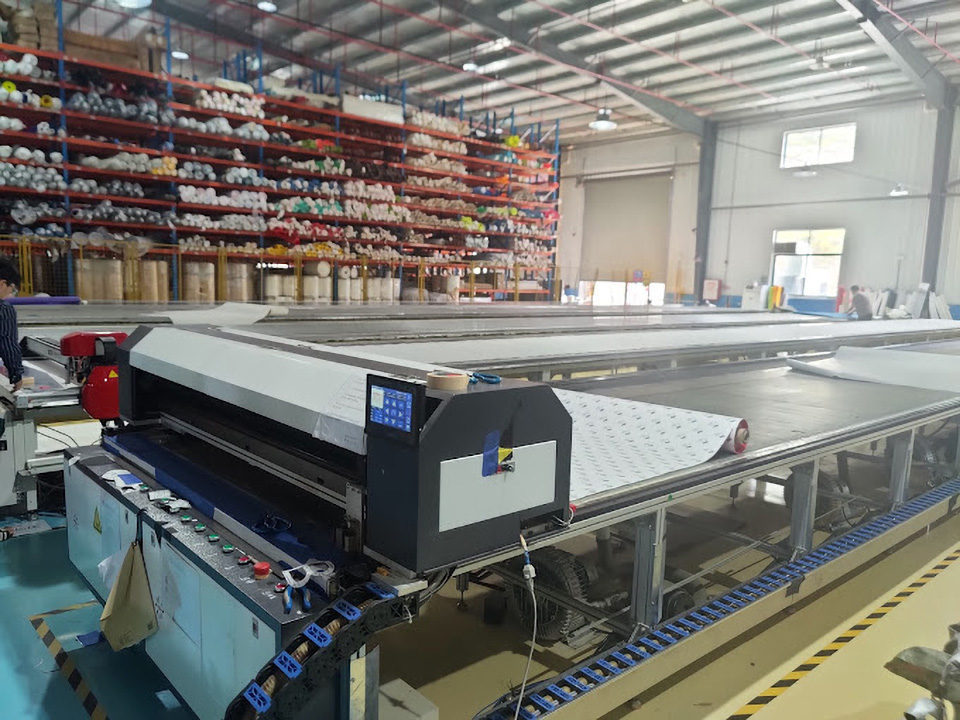

We cooperate with the largest sail-making factories in the world, which serve, among other things, very famous sail lofts with big brand names.

Large volumes of materials and quantity of orders allow our manufacturer to manufacture sails at a very competitive prices, using a wide supply of standard fabric.

How to choose a proper size of a standard asymmetrical spinnaker / gennaker for your yacht?

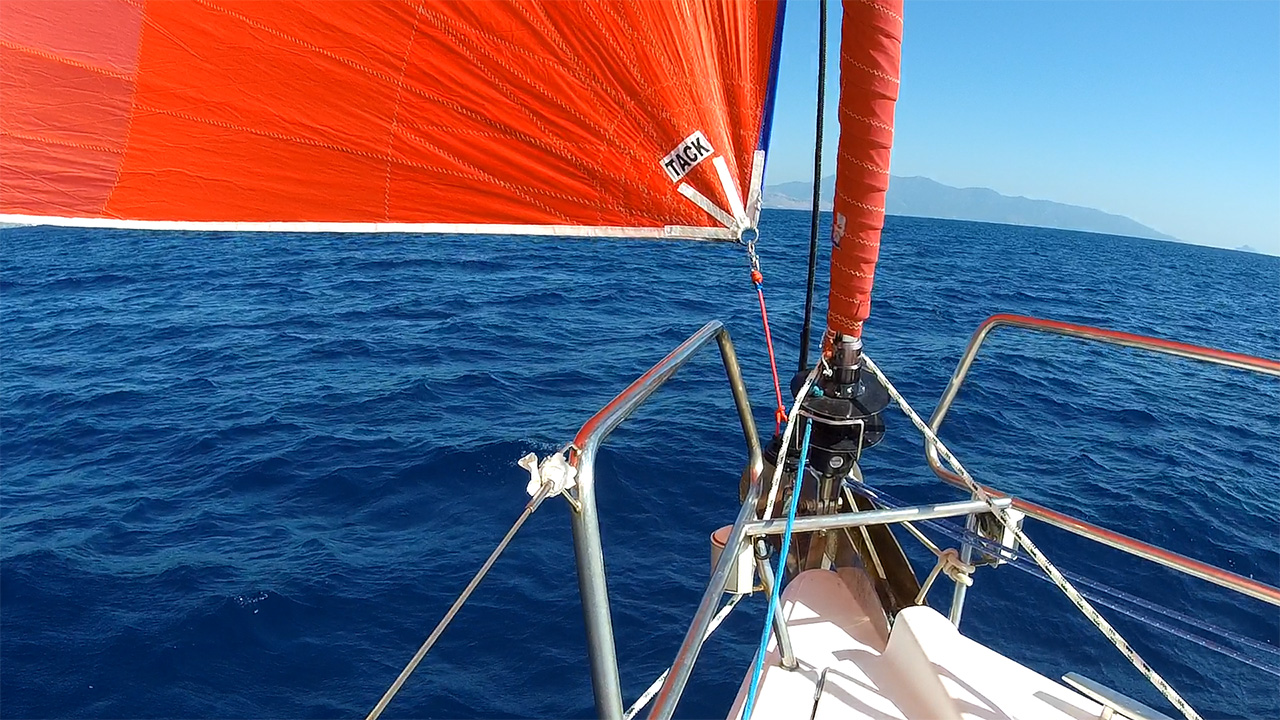

A very important thing is to correctly determine the size of the asymmetric which would be suitable for your yacht. To do this, you will need to measure the distance from the spinnaker halyard exit on the mast to the tack attachment point on the bow of a boat. Please, bear in mind that this distance will be further reduced by shackles, halyard knot, tack strap, etc. It is also advisable to leave some free length of the halyard to allow for sail adjustment.

Easiest way here is to take a long tape measure with a ring at the end to secure it to the halyard and hoist it up until it stops. By taking a measurement at the tack attachment point, you will get the required distance minus the spinnaker halyard knot and the shackle or carabiner.

Subtract from this distance a small amount of about 200mm for the free halyard.

Add 5-8% to this distance to get the approximate luff length of the gennaker (Luff) that would be ideal for your yacht. Based on these data, you can check the table and choose the closest option, rounding down.

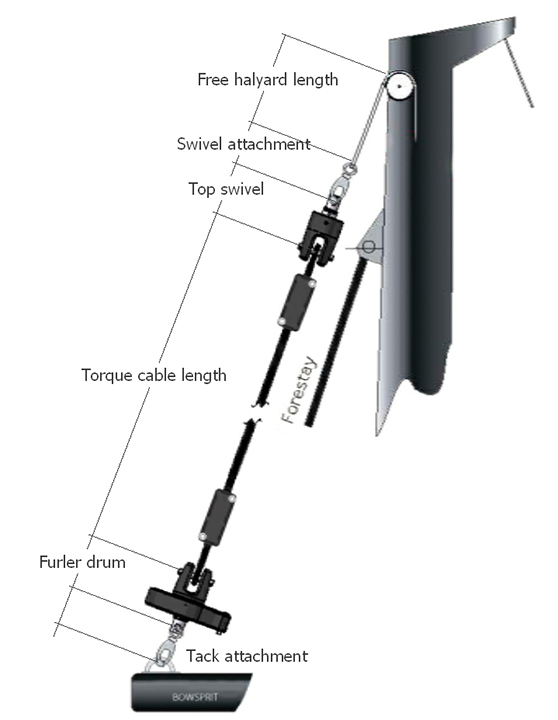

If we are choosing an asymmetrical spinnaker for furling, then we must take into account the dimensions of the upper swivel and the furling drum with a shackle in order to also subtract them from the total length obtained during measurement.

It is recommended to take a smaller gennaker for furling. So, to calculate the luff we add only 4% and also select the closest option.

ns1.2 furler sets
For A2 Spinnaker sizes Micro, 0, 00, 1-2, working load of 1.2 ton or 2650 lb
ns1.5 furler sets
For A2 Spinnaker sizes 2-8, working load of 1.5 ton or 3310 lb
ns2.5 furler sets
For A2 Spinnaker sizes 8-12, working load of 2.5 ton or 5510 lb

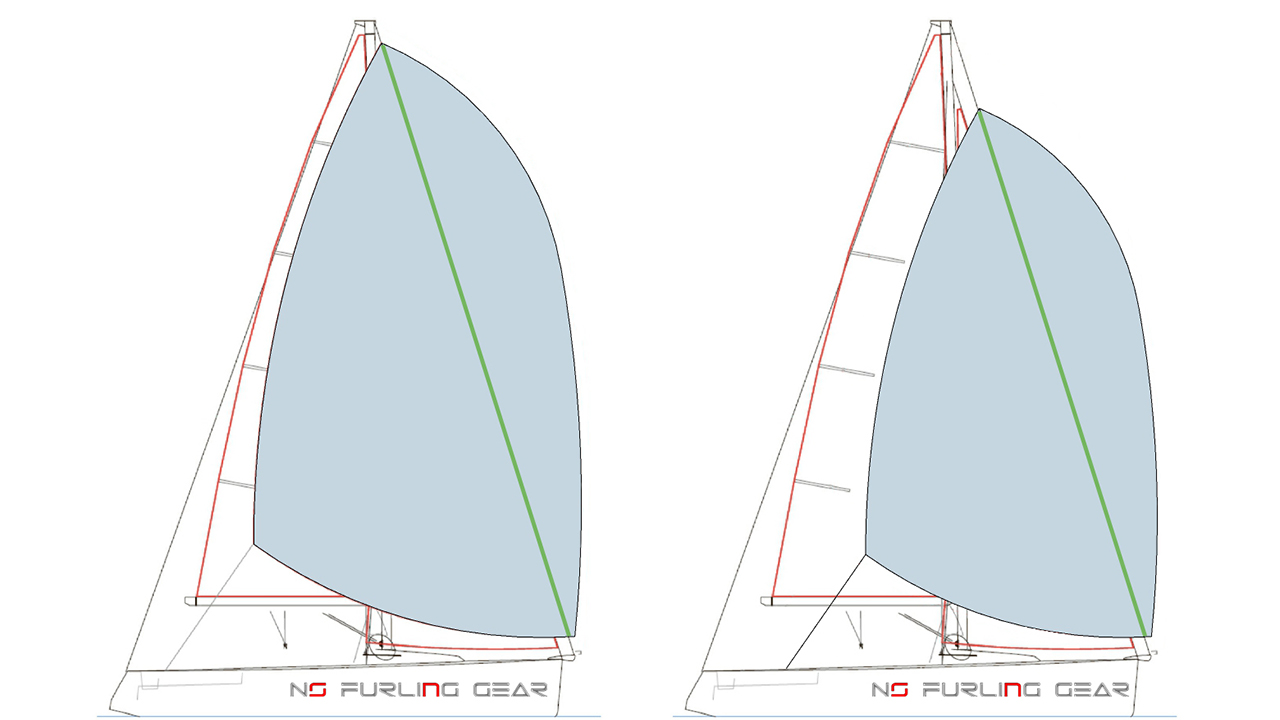

Sometimes it is necessary to simplify the hoisting and removing of the spinnaker – this is especially important for a small team or family on vacation. To do this, you can choose to take a gennaker one size smaller than what is suitable for the boat according to calculations.

Should you require any help with a rig measurements or additional explanations, feel free to contact us. We are always happy to help your select sails and necessary equipment.

Obviously, a standard asymmetrical spinnaker might not be suitable for everyone for various reasons. In this case, we are ready to offer production of any sail type, with different and extra features. We will send measurement forms upon request and discuss all the details of the project.

custom asymmetrical spinnaker
Custom NS gennaker, per sq.m.
Individual project asymmetrical spinnaker
from
€ 16
$ 17

How to order NS standard asymmetrical spinnaker / gennaker?

To order a sail, simply contact us via nsfurlinggear@gmail.com, indicating your sailboat model. We will make an offer that suits you best.

The usual sail production time is 4 weeks. Delivery times starting at 2 weeks depending on your location. For an additional fee, you can speed up the sail-making process up to two weeks. There are seasonal discounts in autumn on any sails.

Asymmetrical spinnaker / gennaker equipment and accessories

To hoist a spinnaker on a boat, a number of mandatory and optional things are required, which we can offer you along with the sail. This way, you can immediately receive the entire set of necessary equipment and be ready to go out on the water as soon as the sail is delivered.

spinnaker sheets
Spinnaker / gennaker sheet ropes
4 boat lengths
sheet blocks
Spinnaker sheet blocks (a pair)
38, 57, 75 mm sailing blocks (hangable)
spinnaker racing bag
Racing Bag
A special bag for convenient spinnaker hoisting from the foredeck
Spinnaker furling system set
spinnaker sock / sleeve
Spinnaker sock / sleeve
Alternative way of gennaker removal and storage

All equipment and accessories will vary depending on the size of the boat and sail. Please, contact us – we will put together the perfect asymmetrical spinnaker / gennaker set for your yacht.

To NS Furling Gear Catalogue
